What you want for a machine to be?

Fulloading!!


Hangzhou FulLoading Automation Equipment Co., Ltd. (FulLoading) as a member of CHINA-BASE Group, it is a professional manufacturing company of new paper container packaging molding equipment integrating technology research and development, manufacturing and marketing.


FulLoading is based on the national major science and technology special research team. It has a professional scientific research team with 20 years of experience in the research and development and production of paper container forming equipment. It focuses on technology research and development and innovation, and injects a steady stream of scientific and technological power into our products.

Placeholder

20000+

Factory Area

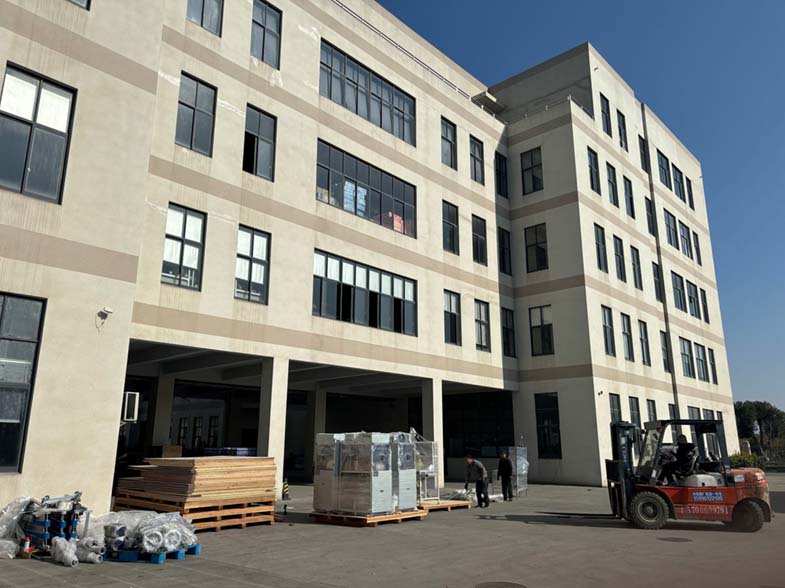

The factory is located in Hangzhou, Zhejiang, with a production workshop of over 20000 square meters.

80+

Exporting Countries

Exported to more than 80 countries and regions, the main markets include the United States, Brazil, United Arab Emirates, Saudi Arabia, Russia, Switzerland, Germany, Romania, etc.

200+

Cooperation Showcases

We have served over 200 domestic and foreign companies.

Our Products--Automation Equipment

Regular market models :

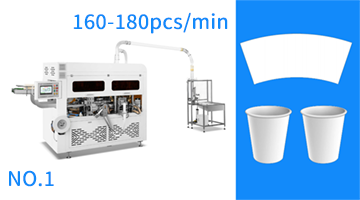

R1. High-speed fully servo paper cup machine


High-speed fully servo paper cup machine FL-200 is one of the regular market models. The production capacity of this type of machine is as high as 160-200/min, suitable for the production of 6-16 ounces of cold/hot cups.

  • Table layout, easy to clean and maintain.
  • Adopts automatic spray lubrication, improves the stability of the overall transmission structure.
  • Uses servo control for each part, reduce the basic transmission structure to operate faster.
  • Ensure the stability and quality of the whole machine.
Model Weight Machine size Rate power/Running power
FL-200 4200kg L2800*W1450*H2000m 32kw/20kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 160-180pcs/min 190-320GSM/0.2-0.48mm 6-16OZ

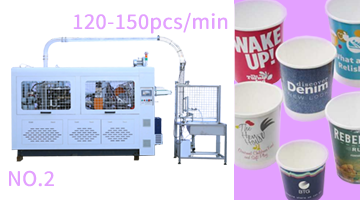

R2. High-speed paper cup machine


High-speed paper cup machine FL-150 is one of the regular market models. The production capacity of this type of machine is as high as 120-150/min, suitable for producing 5-16 oz cold / hot cups.

  • Table layout, easy to clean and maintain.
  • Adopts automatic spray lubrication, improves the stability of the overall transmission structure.
  • Use PLC, photoelectric tracking and servo feed.
  • Ensure the stability and quality of the whole machine.
Model Weight Machine size Rate power/Running power
FL-150 3200kg L2900*W1300*H1950m 24kw/15kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 120-150pcs/min 190-320GSM/0.2-0.48mm 6-16OZ

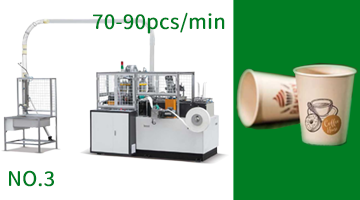

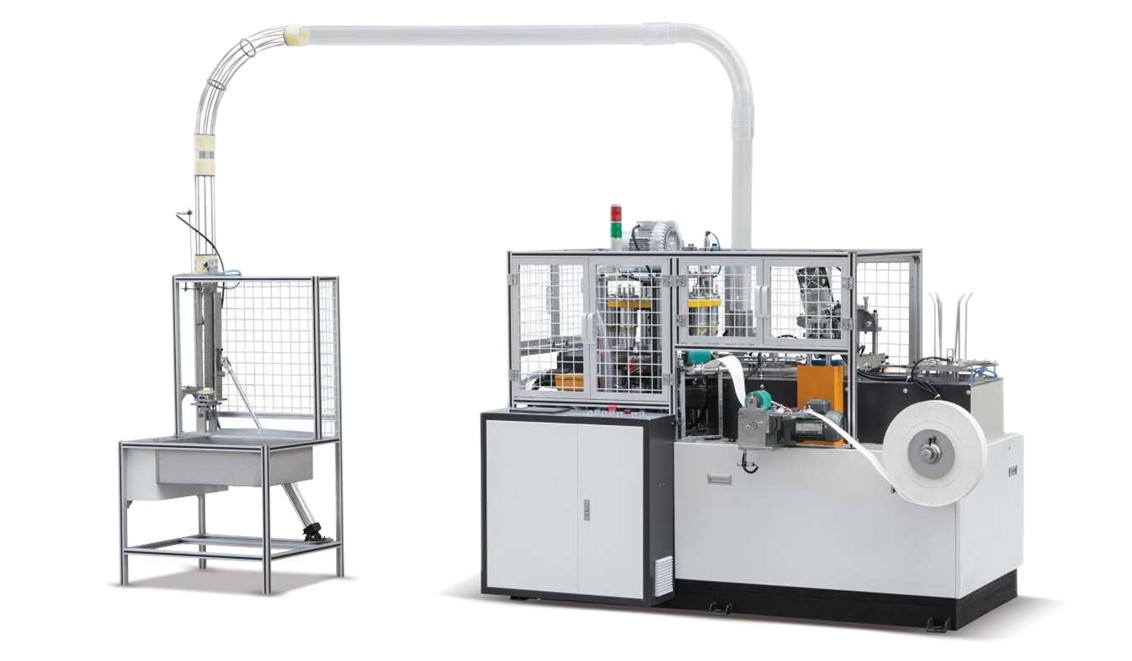

R3. Middle-speed gear paper cup machine


Middle-speed gear paper cup machine uses a single aluminum disk to reduces the failure rate and reduce traning time. lt is a paper cup equipment independently developed by our company to improve the stability of the whole machine through comprehensive technical improvement.

  • 3-16oz single and double coated paper cups can be customized.
  • Fully automatic paper cup forming equipment.
  • Multi row automatic paper feeding.
  • Independently developed by our company.
Model Weight Machine size Rate power/Running power
FL-DP16 1800kg L2200*W1250*H1900m 10kw/7kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.4m3/minute 70-90pcs/min 190-320GSM/0.2-0.48mm 3-16OZ

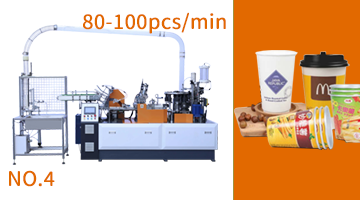

R4. Middle-speed double wall paper cup machine


Middle-speed double wall paper cup machine adopts a desktop layout to isolate the transmission parts and molds. The production capacity of this type of machine is as high as 80-100pcs/min, suitable for the production of 5-16 oz cold/hot cup exterior paste hollow corrugated.

  • Adopts automatic spray lubrication.
  • Longitudinal shaft drive structure.
  • Barrel cylindrical dividing mechanism and gear transmission.
  • Use PLC, photoelectric tracking and servo feed.
Model Weight Machine size Rate power/Running power
FL-WT100 2000kg L2800*W1060*H1650m 8kw/5.5kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 80-100pcs/min 190-320GSM/0.2-0.48mm 3-16OZ

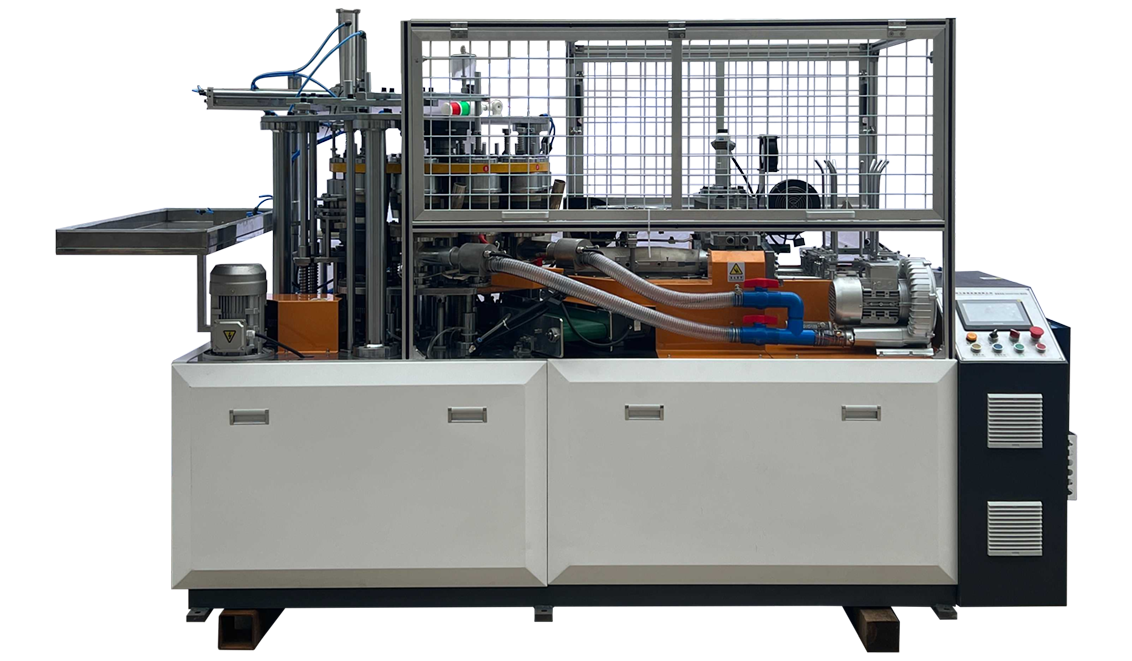

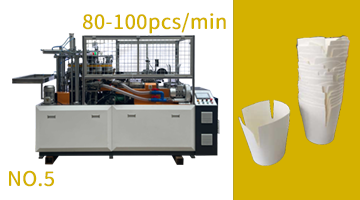

R5. Middle-speed paper bowl machine


Middle-speed paper bowl machine has the advantages of high performance, high efficiency and high quality; the integral steel plate body and oily lubrication system ensure the long-term normal and stable operation of the equipment.

  • High performance.
  • High efficiency.
  • High quality.
  • Integral steel plate body and oily lubrication system.
Model Weight Machine size Rate power/Running power
FL-ZS80 2500kg L3400*W1600*H1850m 15kw/10kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 80-100pcs/min 190-320GSM/0.2-0.48mm Less than 35OZ

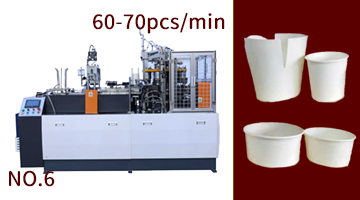

R6. Basic-speed paper bowl machine


Basic-speed paper bowl machine The machine features gear transmission, automatic lubrication system, elimination of manual oiling link, saving manpower.The whole machine adopts intelligent control system, pre-feeding function of bottom paper, alarm for paper shortage, alarm for paper suction, alarm for cup dropping, and a series of upgrades, which have the advantages of high performance, high efficiency, and high quality.

  • Elimination of manual oiling link, saving manpower.
  • Gear structure, which makes the machine run more smoothly.
  • High performance, high efficiency, and high quality.
  • Long-term normal and stable operation.
Model Weight Machine size Rate power/Running power
FL-ZW01 2300kg L2780*W1460*H2050m 15kw/10kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 60-70pcs/min 190-350GSM/0.2-0.48mm Less than 35OZ

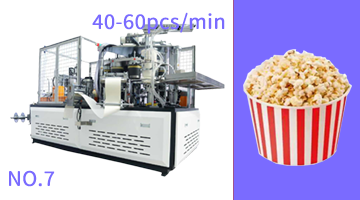

R7. Big paper bowl machine


Big paper bowl machine This machine is an integrated machine, which successfully integrates salad bowl and barrel machine, solving the problem that customers want to make salad bowl and barrel.

  • 10 stations structure, which is more intelligent.
  • Spiral type paper feeding and cup hook, effectively reduces the failure rate.
  • Intelligent pre feeding function, reduces the waste of the bottom paper.
  • Adopts intelligent PLC control system to make the machine more intelligent and reduce labor costs.
Model Weight Machine size Rate power/Running power
FL-SLW09 3300kg L3400*W1600*H1850m 15kw/10kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 40-60pcs/min 190-350GSM/0.2-0.48mm 35OZ-85OZ

High precision models :

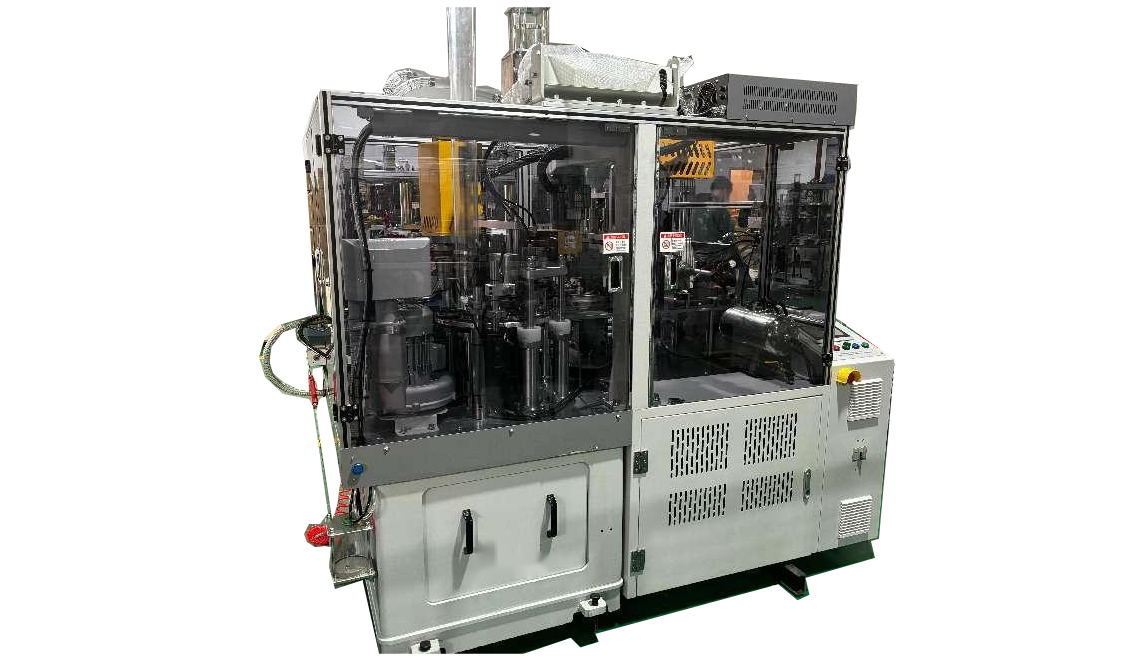

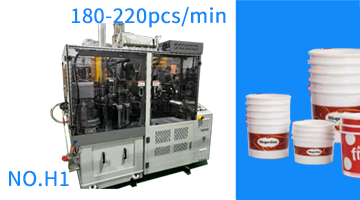

H1. High-speed semi servo paper cup machine(High Precision Customized)


Fulloading High-speed semi servo paper cup machine(High Precision Customized) is specifically designed for major brands to produce 2.5-9OZ small cups, mainly producing small-sized tasting cups.

  • Compact tabletop layout.
  • Ultra-high speed production capacity and ultra light weight.
  • Embodies our company's 20 years of research and development technology.
  • ensuring high-speed production capacity and high-quality with almost no vibration.
Model Weight Machine size Rate power/Running power
FL-220HPS 2600kg L2300*W1400*H1900mm 18kw/12kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 180-220pcs/min 190-380GSM/0.2-0.52mm 2.5-9OZ

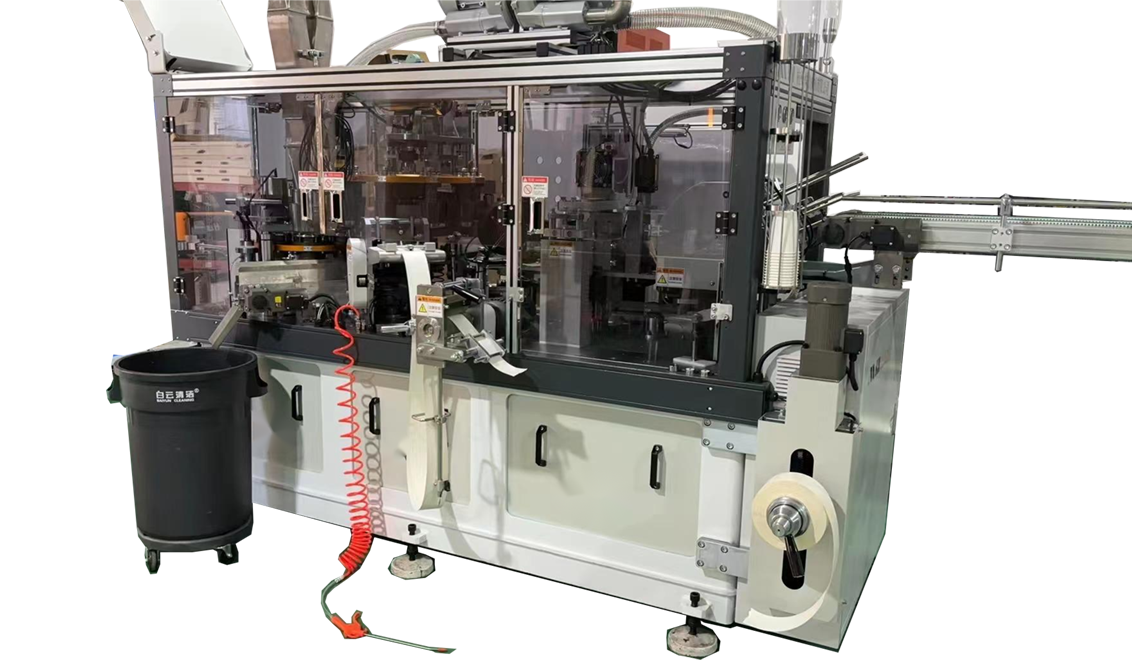

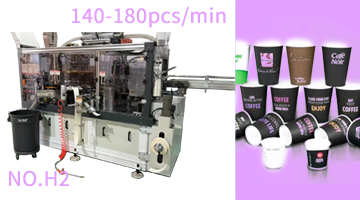

H2. High-speed paper cup machine(High Precision Customized)


High-speed paper cup machine(High Precision Customized) is one of the high precision models. The production capacity can reach up to 160 pieces/minute, and the output per shift (8 hours) can reach about 70,000 paper cups.

  • Table-divided layout, easy to clean and maintain.
  • Transmission mechanism is hidden in closed space and inner moving parts use spray lubrication.
  • Transmission mechanism adopts parallel shaft transmission.
  • The whole process is monitored and tracked by photoelectric induction, which is efficient and intelligent.
Model Weight Machine size Rate power/Running power
FL-150HP 2600kg L2700*W1400*H1900mm 15kw/10kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 140-180pcs/min 190-380GSM/0.2-0.52mm 4-16OZ

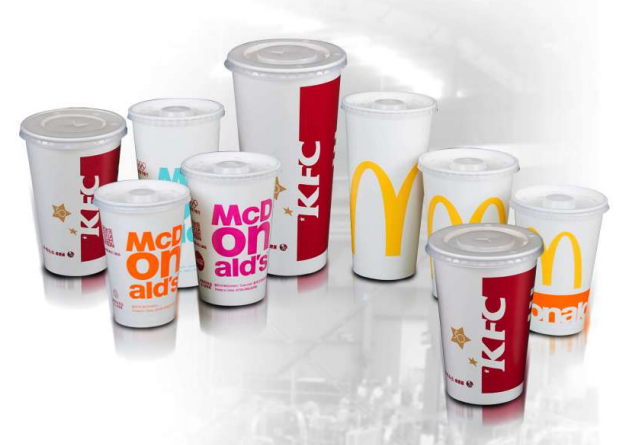

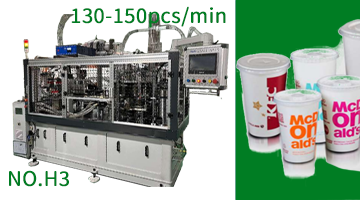

H3. High-speed high height paper cup machine(High Precision Customized)


High-speed high height paper cup machine(High Precision Customized) specializes in producing large-size and various special-.shaped paper cups with height 135-170mm and diameter<95mm. lt is an expanded product of the originalscm-600 medium speed paper cup forming machine

  • 10 years of market test and optimization.
  • Simple structure, stable performance and large product variable space.
  • Equip with the highest cost performance of similar products in the market.
  • Independently developed by our company.
Model Weight Machine size Rate power/Running power
FL-150HPH 3300kg L2800*W1400*H1900mm 15kw/12kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 130-150pcs/min 190-380GSM/0.2-0.52mm 6-24OZ

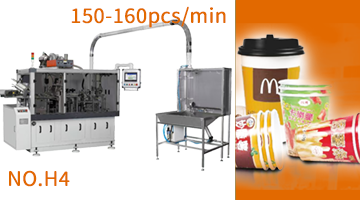

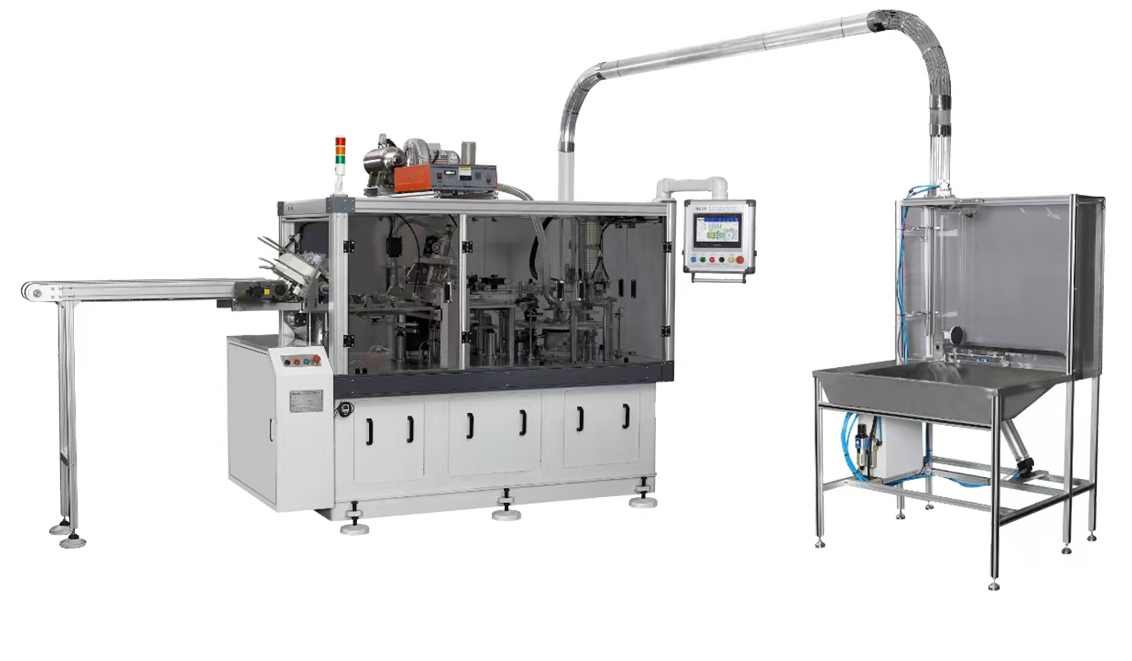

H4. High-speed double wall paper cup machine(High Precision Customized)


High-speed double wall paper cup machine(High Precision Customized) is designed for the subsequent processing of paper cup.

  • Perfectly combine another printed paper with paper cup.
  • Externally pasted paper can play the role of heat insulation.
  • Add the strength and beauty of the paper cup body..
  • Can be Customized.
Model Weight Machine size Rate power/Running power
FL-150HPT 2500kg L2400*W1000*H1900mm 8kw/5kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.3m3/minute 150-160pcs/min 190-380GSM/0.2-0.52mm 6-24OZ

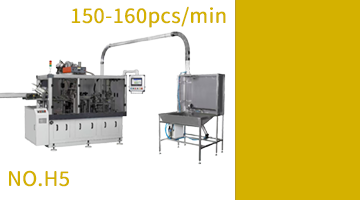

H5. High-speed high height double wall paper cup machine(High Precision Customized)


High-speed high height double wall paper cup machine(High Precision Customized) is designed for the subsequent processing of high height paper cup（135mm-170mm）.

  • Perfectly combine another printed paper with paper cup.
  • Externally pasted paper can play the role of heat insulation.
  • Can add the strength and beauty of the paper cup body.
Model Weight Machine size Rate power/Running power
FL-150HPHT 2500kg L2400*W1000*H1900mm 8kw/5kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.3m3/minute 150-160pcs/min 190-380GSM/0.2-0.52mm 6-24OZ

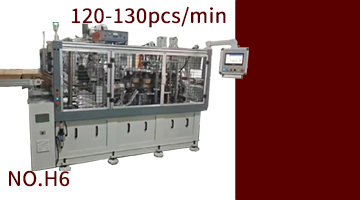

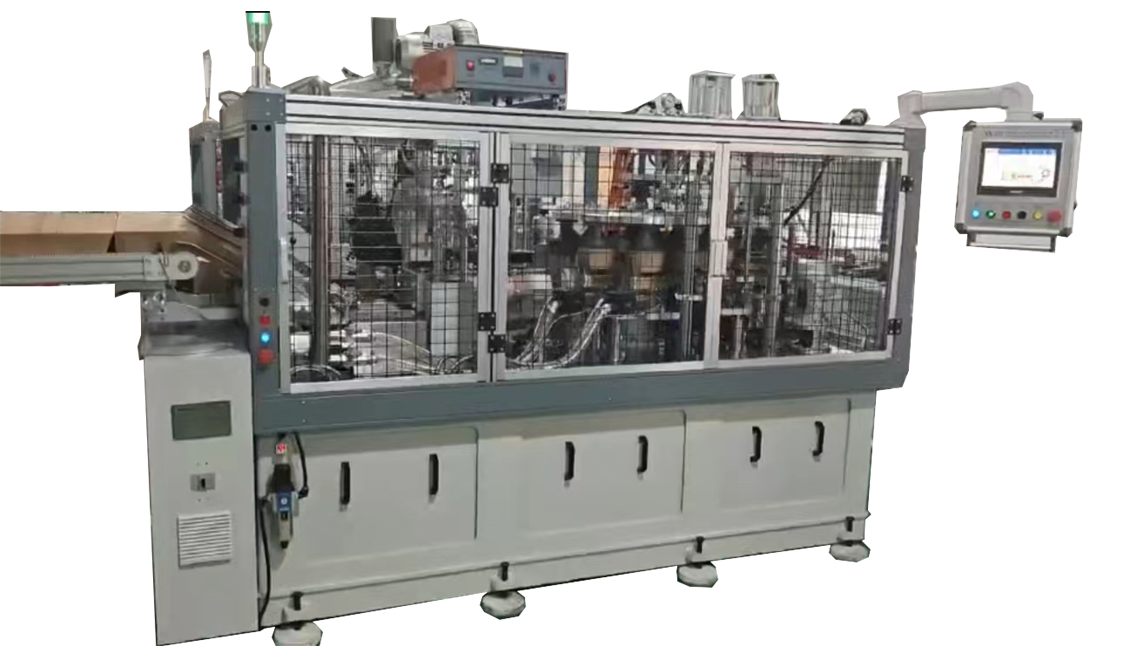

H6. High-speed paper bowl machine(High Precision Customized)


High-speed paper bowl machine(High Precision Customized) is used to produce paper bowls and barrels with single or double-sided polyethylene coating. And can manufacture paper barrels with special shapes and specifications.

  • Elimination of manual oiling link, saving manpower.
  • Gear structure, which makes the machine run more smoothly.
  • High performance, high efficiency, and high quality.
  • Long-term normal and stable operation.
Model Weight Machine size Rate power/Running power
FL-150HPW 3800kg L2800*W1500*H1900mm 25kw/17kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 120-130pcs/min 190-380GSM/0.2-0.52mm 20-57OZ

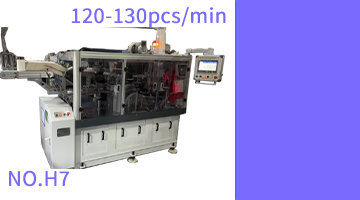

H7. High-speed paper double wall bowl machine(High Precision Customized)


High-speed paper double wall bowl machine(High Precision Customized) is used to produce double wall paper bowls and barrels with single or double-sided polyethylene coating, and can manufacture paper barrels with special shapes and specifications.

  • 10 stations structure, which is more intelligent.
  • Spiral type paper feeding and cup hook, effectively reduces the failure rate.
  • Intelligent pre feeding function, reduces the waste of the bottom paper.
  • Adopts intelligent PLC control system to make the machine more intelligent and reduce labor costs.
Model Weight Machine size Rate power/Running power
FL-150HPWT 3000kg L2400*W1200*H1900mm 15kw/10kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 120-130pcs/min 190-380GSM/0.2-0.52mm 20-57OZ

Other assistant machine :

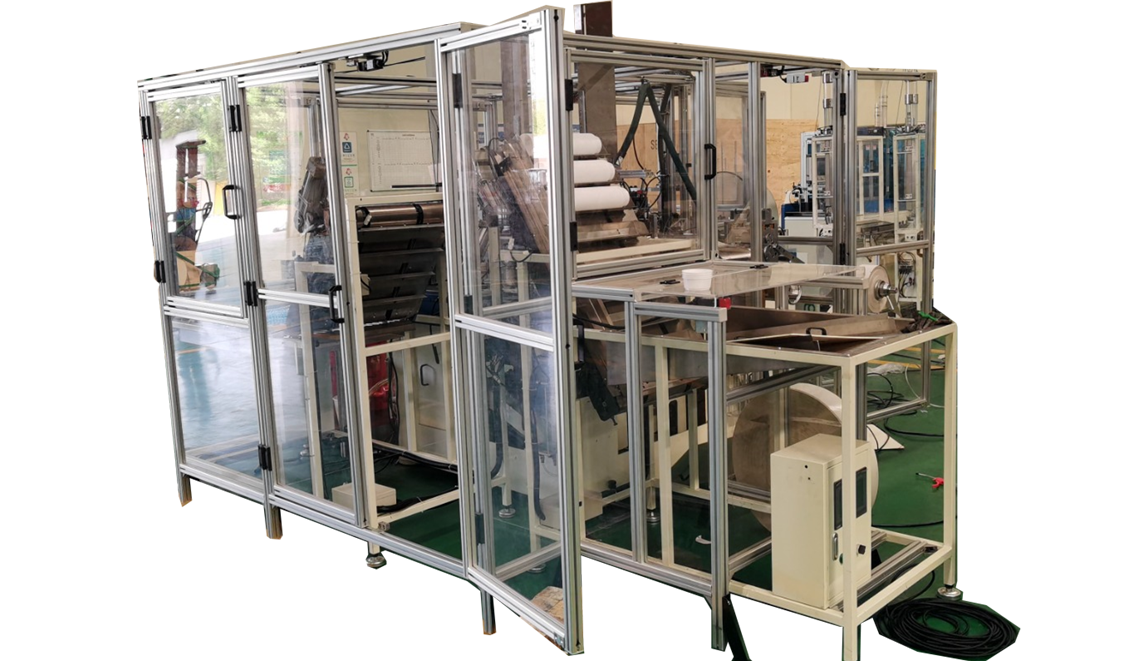

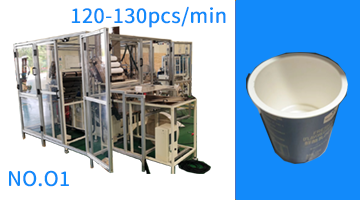

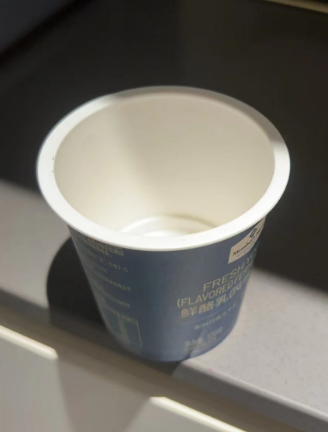

O1. Plastic container labelling machine


Plastic container labelling machine is a product specially developed for producing with the inner cup being a plastic cup and the outer cup being a paper sleeve.

  • currently the most stable in China.
  • Having experience serving large companies such as WORLD TOP 5 plastic container companies. & etc.
  • Front frame can be bonded using ultrasonic/hot melt adhesive.
  • Back frame can be bonded using hot melt adhesive/cold glue and other methods.
Model Weight Machine size Rate power/Running power
FL-150PT 3800kg L2400*W1200*H1900mm 15kw/10kw
Compressed air Running Capacity Paper specification/Thickness Paper cup size
Min 0.6Mpa,0.5m3/minute 120-130pcs/min 190-380GSM/0.2-0.52mm 4-16OZ

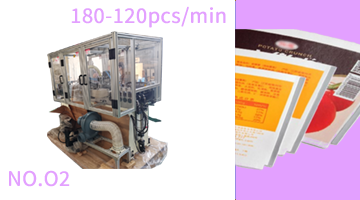

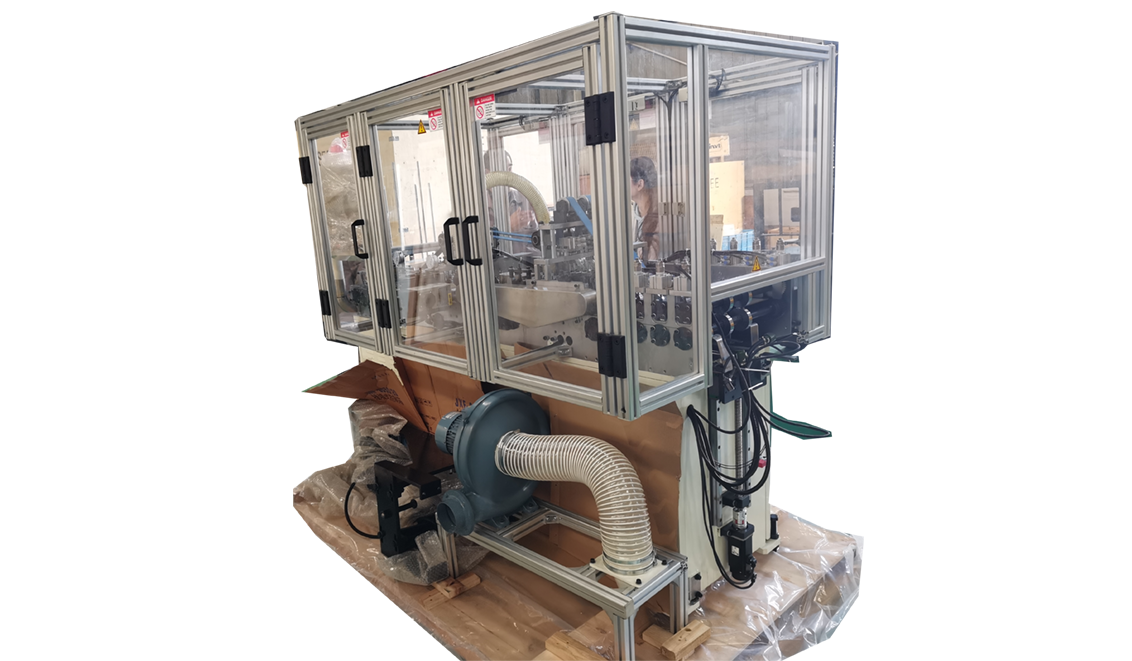

O2. Skiving machine


Skiving machine is a horizontal high-speed paper cutting and folding equipment. One of the necessary equipment for the production of moisture-proof and anti-seepage multi composite paper container.

  • Simple operation, stable performance and strong paper adaptability.
  • Maximum speed is 150 sheets / min.
  • Mainly used to seal the middle seam of paper containers such as paper cans.
  • Improve the tightness of paper containers.
Model Weight Machine size Rate power/Running power
FL-220XB 2200kg L2900*W800*H1600mm 15kw/10kw
Compressed air Running Capacity Paper specification/Thickness
Min 0.6Mpa,0.5m3/minute 180-120pcs/min 220-380GSM/0.3-0.52mm

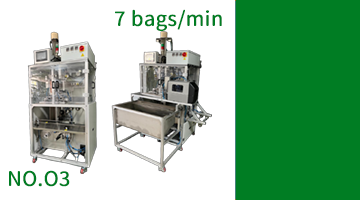

O3. Automatic packing machine


Automatic packing machine produced by our company can completely replace the existing cup receiving table. It is currently the mainstream packaging machine.

  • Occupies a very small area（0.8m2）.
  • Can achieve automatic bagging and labeling.
  • The machine is set to both normal mode and packaging mode.
  • Can operate in normal mode without affecting customer production.
Model Weight Machine size Rate power/Running power
FL-PAK 230kg L1000*W660*H1760mm 3kw/1.5kw
Compressed air Running Capacity Top diameter Packing material
Min 0.6Mpa,0.03m3/minute 7 bags/min 50-150mm,<780mm HDPE/LDPE

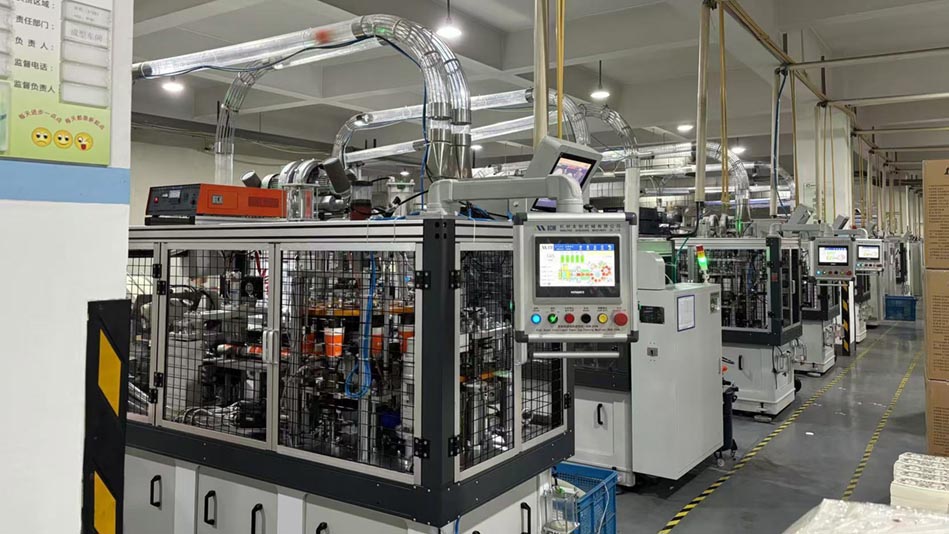

Production Highlights

Placeholder

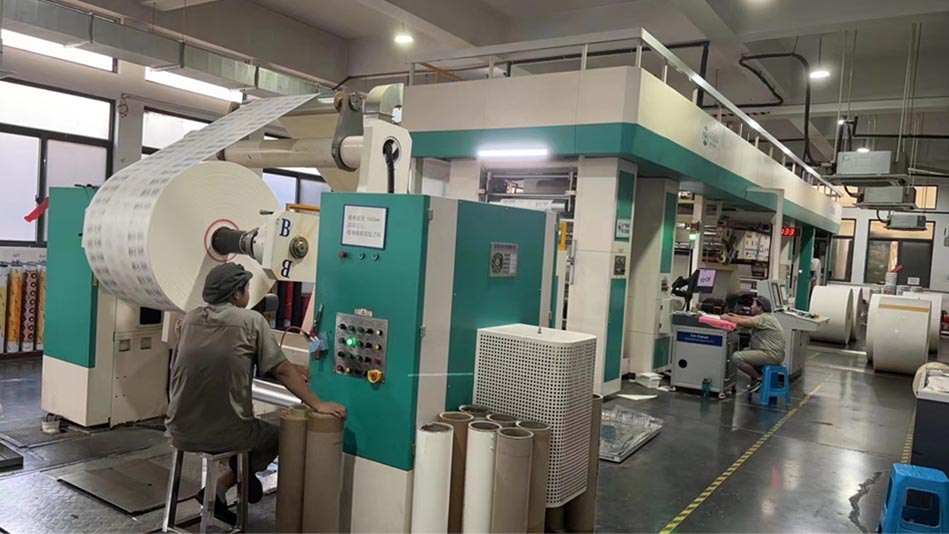

Our company not only produce machines,we’re also a group company with an annual production capacity of 50 billions cup,our main customers is starbucks,McDonald’s KFC,Luckin coffee,and almost airlines company’s customization.

Placeholder

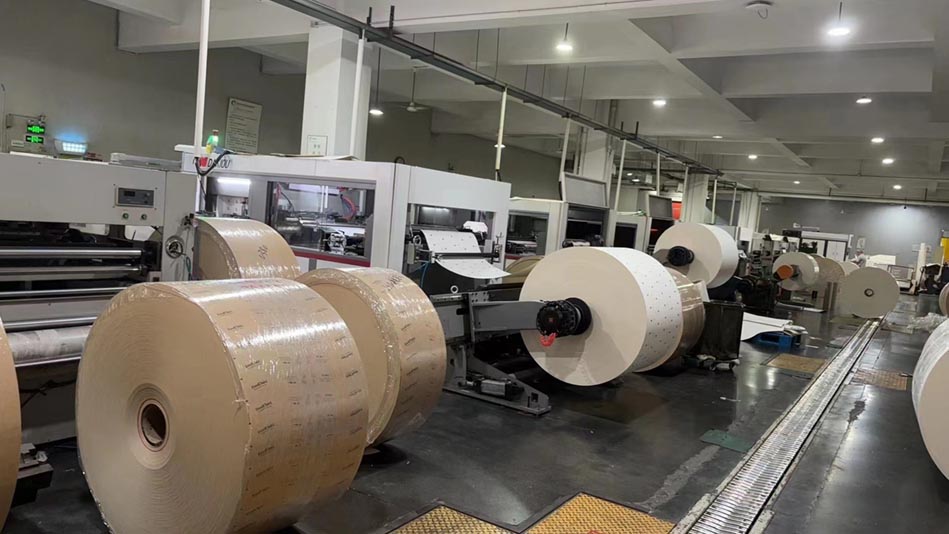

Our company has been producing paper cup since 1993. We can provide customers with production experience from film coating, printing, die-cutting, molding to packaging.

Placeholder

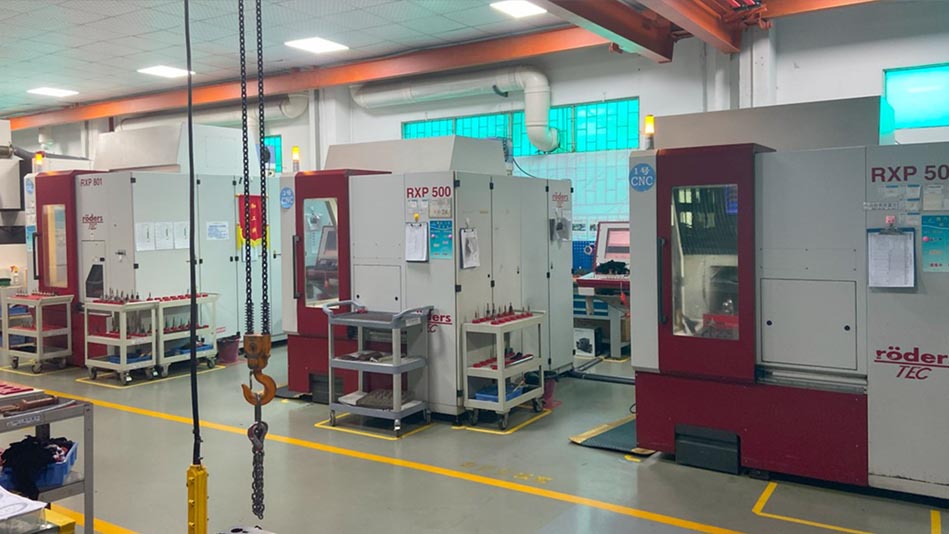

We have the best processing equipment from Japan and Germany to ensure the quality and service life of our machine’ components.

Placeholder

All machines in our company will be used for at least 3000 hours during the research and development stage or when the structure is replaced, ensure the stability of the equipment before being sold to our customers.

Why Choose Us?

Placeholder

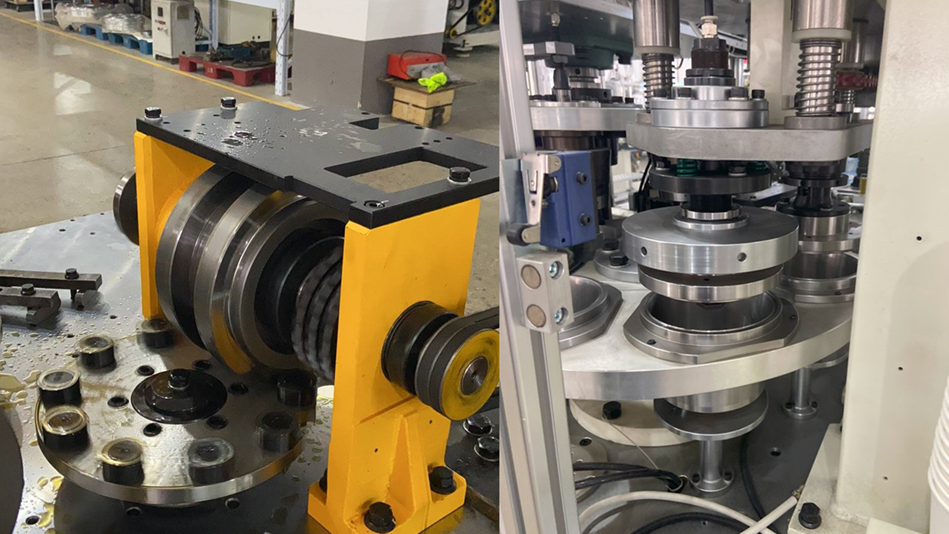

Self-made and Reliable Devices

1. Our company has built our own cam laboratory and has been committed to optimizing the cam process and operating curve for more than 20 years.

2. We have adopted more mechanical structures which improves the consistency of paper cup size, the quality of paper cups.

Placeholder

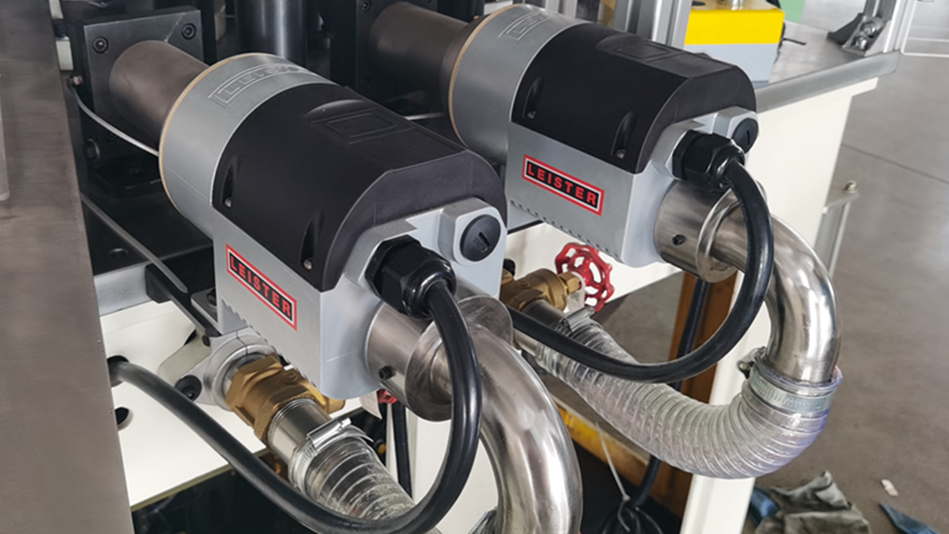

Variable frequency heating system

Variable frequency heating system with 40% maximum reduction While ensuring stable adhesion and high-speed production of paper cups, it reduces about 40% of thermal energy waste. The paper cup machine measured 13KW, and the paper bowl machine measured about 17KW.

Placeholder

Smaller machine size and High precision hug wings

The transmission system produced by our company is more reasonable and is easier to maintain. Our machines have reduced weight by more than 30%, the operating speed of the machines has increased by 20%.

Hug wings are produced in an integrated manner, with high precision, easy replacement, low jamming rate, and stable machine production.

Placeholder

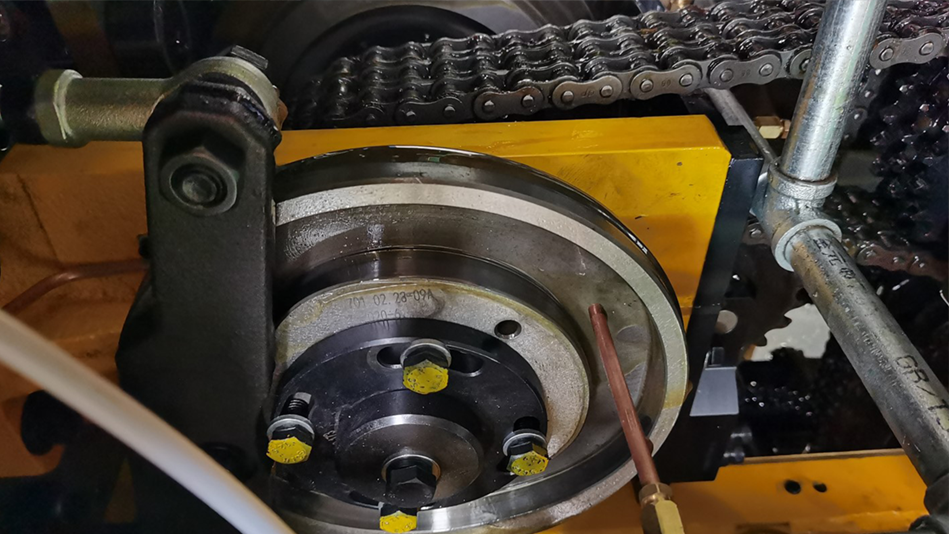

Fully oil spray lubrication

The lower transmission structure of the machine adopts full spray lubrication because the machine generates a large amount of heat during high-speed production, which increases the wear of components. Adopting full spray lubrication can greatly increase the service life of components.

Partner Approval

Placeholder

Proper Factory Environment

Regular maintenance checks ensure machinery operates smoothly. Not only complies with product quality and productivity but also complies health and safety regulations.

Placeholder

Pleasant Partnership

Partnership with collaborators is built on best machine quality and shared goals. Transparent feedback ensure alignment and valuting each other's expertise.
